Gledhill PulsaCoil BP

Electric Mains Pressure Hot Water systems

Stores energy using off-peak electricity and returns mains pressure hot water from a vented thermal store

The UK's Number One Supplier of Gledhill Products

Understand a PulsaCoil - Click here

PulsaCoil

The clever little unit that installs unobtrusively in any convenient location, gathers energy from an off-peak electricity supply then returns it as mains pressure hot water on demand. Simple!

The PulsaCoil is an ideal hot water system for any property, but especially suits the requirements of properties that only have electricity as a fuel source or for landlords who do not want to be shackled with responsibilities under the Gas Safety Regulations and issues regarding boiler servicing. PulsaCoil also makes dividing a larger property into smaller units so much easier when it comes to the provision of domestic hot water.

Electricity is a clean and simple alternative to more complicated gas fired systems. Furthermore, there's no need to worry about routing a flue for exhaust fumes as there would be with gas or oil, so there's far more flexibility siting the unit than there ever could be with a conventional boiler.

Incorporating safety as a primary consideration the PulsaCoil is equipped with a thermostatic blending valve on the hot water outlet. This feature which is already Law in Scotalnd and soon to become Law in England prevents hot water reaching taps at an unsafe temperature - hence preventing scalding or injury (a very real issue with the young and elderley).

Now you can retain electric in apartments and achieve a pass SAP rating

Pulsacoil is easy to size (see guide table below)

There are 4 models in the range to suit apartments with floor areas from 70 sq.m to 170 sq.m



Pulsacoil is easy to install

All models are supplied shrink wrapped with built in moulded lifting handles. All controls and pipe-work are mounted on the front face of the unit for ease of installation and maintenance. Gledhill’s revolutionary design enables rapid second fixing using copper or approved plastic piping and a variety of optional fixings, such as flexible pipes and push fit connections.


Immersion heaters that can never scale

Because the immersion elements are situated in the same primary water all the time and this water is not renewed, no scaling takes place, even in hard water areas.

No annual service required

The appliance’s advanced construction ensures a long life and the primary store design removes the need for annual checks on sacrificial anodes, found on many unvented units.


PULSACOIL Technical and Prices

Pulsacoil BP differs from earlier models and requires additional components. For more detailed information click here.

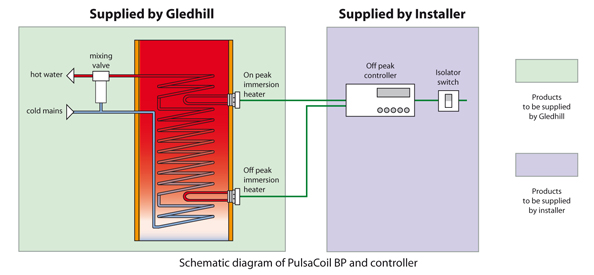

Schematic



Specifications

Pulsacoil BP Price List



Price inc VAT

Model Description

Special Offer INFO

PC BP 120

New Gledhill Pulsacoil 120 Litre £696.13

PC BP 150

New Gledhill Pulsacoil 150 Litre £777.27

PC BP 180

New Gledhill Pulsacoil 180 Litre £826.12

PC BP 220

New Gledhill Pulsacoil 220 Litre £864.28


PC HTR 3kW

Pulsacoil Immersion Heater (Specially callibrated) £54.08

XB142

Gledhill in-line scale inhibitor (fitted and wired) £66.54


PULSACOIL is a Trade Name. A PULSACOIL BP is a thermal store in a cabinet. This offers an aesthetically pleasing unit. The new model (BP)does nothing more than any other 'direct' thermal store (apart from look pretty). You are therefore at liberty to choose from other thermal store ranges when seeking a replacement.

Click here for an alternative product.

Click here for a more detailed explanation of PULSACOIL



Order



Model selection


Notes:
1. The appliance is supplied on a 100mm high installation base and comes complete with a separate top up cistern. This can be installed with or without an overflow/warning pipe as required.
2. An allowance for the top up cistern and the 100mm installation base are both included in the minimum cupboard dimensions.
Please Note: Where the mains water hardness exceeds 200ppm provision should be made to treat the feed water to reduce the rate of accumulation of lime scale. The optional factory fitted in-line scale inhibitor should be specified at the time of order for hardness levels between 200 and 300 ppm (mg/l). Where the water is very hard ie 300ppm (mg/l) and above the optional polyphosphate type scale inhibitor should be specified at the time of order.
