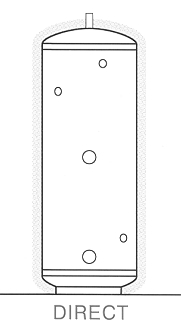

Stainless Lite Direct
unvented hot
water cylinder
|
|
Immersion heaters only |
Model |
Litres |
Price inc VAT |
|
|
Tech Info |
D90
|
90 |
£415.32 |
396.45 |
D120
|
120 |
£442.45 |
422.34 |
D150
|
150 |
£466.42 |
445.22 |
D180
|
180 |
£485.71 |
463.38 |
D210
|
210 |
£505.01 |
482.05 |
D250
|
250 |
£567.44 |
541.65 |
D300
|
300 |
£639.58 |
610.28 |
D400
|
400 |
£703.78 |
671.79 |
|
Supplied with two immersion heaters for
off-peak and on-peak use,
these cylinders are the ultimate
lightweight, easy to install answer
to unvented mains
pressure electric hot water storage. |
|

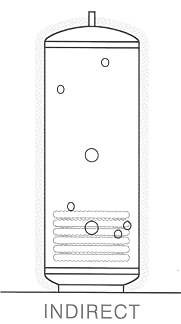

Stainless Lite Indirect
unvented hot water cylinder
|
|
Boiler coil and Immersion heater/s |
Model |
Litres |
Price inc VAT |
|
|
Tech Info |
IND90
|
90 |
£519.39 |
495.78 |
IND120
|
120 |
£538.56 |
514.08 |
IND150
|
150 |
£557.85 |
532.49 |
IND180
|
180 |
£586.74 |
560.07 |
IND210
|
210 |
£620.55 |
592.34 |
IND250
|
250 |
£690.25 |
663.92 |
IND300
|
300 |
£721.45 |
688.65 |
IND400
|
400 |
£802.16 |
765.70 |
|
The indirect range has high
efficiency corrugated tube coils to give
much faster re-heat
times than can be achieved with plain tube coils.
All tappings are within a 90° segment to make installation
easier |
|

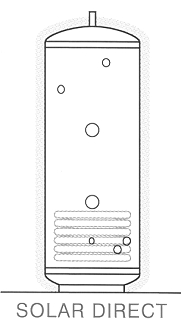

Stainless Lite Direct
Solar
unvented hot water cylinder
|
|
Immersion heater/s and solar coil |
Direct Solar Model |
Litres |
Price £ inc VAT |
|
|
Tech Info |
|
|
|
Normal |
Special |
D180 S
|
180 |
£630.63 |
601.96 |
D210 S
|
210 |
£655.86 |
426.04 |
D250 S
|
250 |
£731.53 |
698.28 |
D300 S
|
300 |
£802.16 |
765.70 |
D400 S
|
400 |
£862.70 |
823.49 |
|
|
|
|
|
|
An electrically heated cylinder with a
high performance solar coil.
It is capable of meeting the requirements
of ADLI, provided that
it is matched to the panels and the hot water
requirement correctly |
|
|

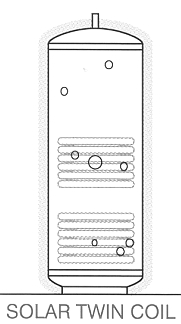

Stainless Lite Indirect
Solar
unvented hot water cylinder |
|
Boiler coil, Solar coil and Immersion heater |
Indirect Solar Model |
Litres |
Price £ inc VAT |
|
|
Tech Info |
|
|
|
Normal |
Special |
IND180 S
|
180 |
£741.62 |
707.91 |
IND210 S
|
210 |
£776.94 |
741.62 |
IND250 S
|
250 |
£802.16 |
765.70 |
IND300 S
|
300 |
£832.43 |
794.59 |
IND400 S
|
400 |
£933.33 |
890.91 |
|
|
|
|
|
|
Cylinder heated from conventional boiler
(oil or gas) provided
with a second high performance coil for Solar
input |
|
 |

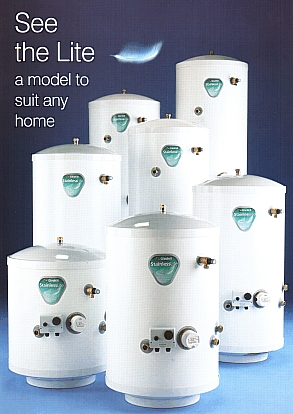

The Gledhill Stainless
Lite is supplied complete with all the quality fittings you need:
- Immersion Heater(s)
- 2 Part zone valve
(indirect)
- Wiring Centre (indirect)
- Dual Thermostat (indirect)
- Full installation /
maintenance instructions
- Temperature and pressure
relief valve
|
- Inlet Control set
- Benchmark Log Book
- 15mm/22mm tundish
- Expansion Vessel
- Wall mounting bracket
- Expansion vessel hose
|
|
|
|
|
|
|
|
|
Selection Guide - How to estimate required cylinder size |
|
Hot water demand |
Bedrooms |
Indirect Litres |
Direct Litres |
 |
| 1 Bathroom or
shower |
Bedsit |
90 |
120 |
|
1 Bathroom with shower |
2/3 |
120 |
150/180 |
| 1 Bathroom
with shower |
3/4 |
150 |
210 |
|
1 Bathroom with 2 showers |
3/4 |
150 |
210 |
| 2 Bathrooms/
separate shower |
4/5 |
210 |
250 |
|
3 Bathrooms/ separate shower |
4/5 |
250 |
300 |
| 3 Bathrooms/
2 separate showers |
5/6 |
300 |
300 |
|
|
Where used
with solar it is important to match the dedicated solar volume with the
property specification to achieve
compliance with building regulations. |
|
|
|
Duplex Stainless
The Stainless Lite uses the very latest
high specification Duplex to resist all forms of corrosion including
crevice and stress whilst its high mechanical strength gives it the
strength for long life. It is particularly light and easy to handle on
site. |
Manufacture
The very latest automated welding
procedures along with full post weld treatments guarantee welds that are
as strong as the parent material. Stainless Lite is pressure tested in
the factory to a full 12 bar which is four times the normal working
pressure. |
 |
|
More Hot Water
Stainless Lite uses a high heat transfer
corrugated tube heat exchanger to give 20% faster recovery than plain
tube. It is also lighter and stronger than plain tube making the vessel
the lightest and easiest to handle on site. |
Controlled Stratification
The unique Gledhill diffuser reduces
turbulence when cold water enters the store by baffling the flow |
|
Minimal Heat Loss
Tests show that the 50mm of polyurethane
foam injected into the case and covering both domes achieves
astonishingly low levels of heat loss. |
Guarantee
The 25 year guarantee underlines the usual
Gledhill confidence in its own products. |
|
|
|
| Further
Technical Specifications:
(click images to enlarge) |
 |
 |
|
Tech Info For
even more technical information |
|
|
|
