Stainless Lite PLUS HORIZONTAL unvented hot water cylinder

Add to favourites

GLEDHILL Stainless Lite PLUS

HORIZONTAL Unvented hot water cylinder

Horizontal unvented hot water cylinder by Gledhill

Index > Gledhill Stainless Horizontal unvented hot water cylinders

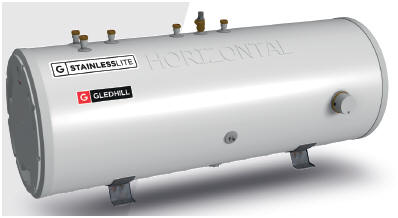

Gledhill Stainless Lite PLUS Horizontal unvented hot water cylinder

GLEDHILL Stainless Lite PLUS Unvented Horizontal Hot Water Cylinder

This super new product is the latest addition to the comprehensive range of Stainless Lite Unvented Cylinders. This innovative product is;



Fully NSF WRC approved to meet the legal requirements of Building Regulations



Perfect for installing in the available loft space to free up room within living areas



A complete range with models from 180 litres to 300 litres in both indirect and indirect solar configurations



Specifically designed to maximise hot water performance with a specialised corrugated heat exchanger



All this in addition to the benefits that come with the Stainless Lite family of cylinders.

Gledhill Stainless Lite PLUS Horizontal Unvented hot water cylinder technical manual

Technical Manual

Click image for full installation and data manual

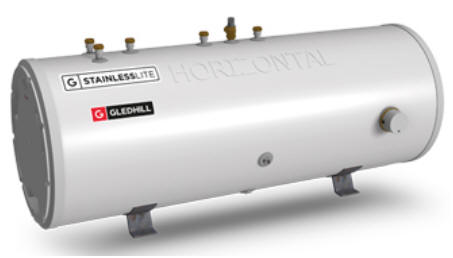

GLEDHILL Stainless Lite PLUS HORIZONTAL

Indirect unvented hot water cylinder

Gledhill Stainless Lite PLUS Horizontal SOLAR unvented hot water cylinder

Tech Info
Size Capacity Diameter Length

Price inc VAT

PLUIND180H

 180 550mm 1306mm 1004.99

PLUIND210H

 210 550mm 1494mm 1075.25

PLUIND250H

 250 550mm 1744mm 1130.75

PLUIND300H

 300 550mm 1990mm 1300.03

Litres

Cylinder heated from conventional boiler

(oil or gas) and/or immersion heater

GLEDHILL Stainless Lite PLUS HORIZONTAL

Indirect Solar unvented hot water cylinder

Tech Info
Size Capacity Diameter Length

Price £ inc VAT

PLUIN180SH

 180 550mm 1306mm 1113.75

PLUIN210SH

 210 550mm 1494mm 1220.99

PLUIN250SH

 250 550mm 1744mm 1304.56

PLUIN300SH

 300 550mm 1990mm 1643.33

Litres



Cylinder heated from conventional boiler (oil or gas) and/or

immersion heater provided with a second high performance

coil for Solar input



The Gledhill Stainless Lite Horizontal is supplied

complete with all the quality fittings you need:

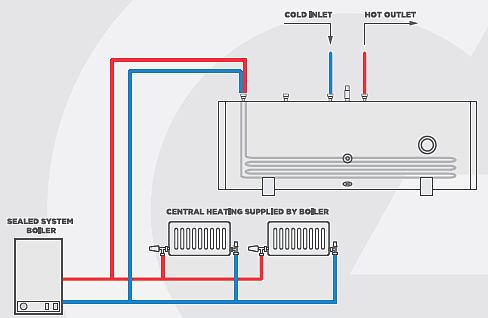

Gledhill Stainless Lite PLUS Horizontal Unvented hot water cylinder schematic

Immersion Heater(s)

2 Part zone valve (indirect)

Wiring Centre (indirect)

Dual Thermostat (indirect)

Full installation / maintenance instructions



 Fittings kit supplied with the Stainless Lite unvented hot water cylinder

Temperature and pressure relief valve, Inlet Control set,

Benchmark Log Book, 15mm/22mm tundish, Expansion Vessel,

Expansion vessel hose





Model Selection

(Intended only as a guide as individual patterns of use vary

so will appropriate model)


Standard Model

Bed Spaces (Bedrooms)

Litres Capacity

1 Bathroom plus 2 shower rooms

7 (5)

180

2 Bathrooms

7 (5)

180

2 Bathrooms + shower room

7 (5)

210

2 Bathrooms + 2 shower rooms

7 (5)

250

3 Bathrooms

9 (6)

300


Solar Model

Bedrooms

Litres Capacity

1 Bathroom

1-3

180

1 Bathroom + 1 Shower room

1-3

210

1 Bathroom + 2 Shower rooms

2-4

250

2 Bathrooms + 1 shower room

3-4

300



Space or access a little tight?

NEW - Stainless Steel Slimline Models Now Available

475mm Diameter

Easy access unvented hot water cylinders

Also available as a Heat Pump version for systems that

utilise the alternative heating method

offered by Heat Pumps



GLEDHILL Horizontal unvented hot water cylinder May 17010522
