Copper Hot Water Cylinders - Open vented Direct and Indirect


Envirofoam Copper hot water storage cylinders by GLEDHILL

Index Page > Hot Water Cylinders > Direct & Indirect Copper Hot water Cylinders

Direct and Indirect open vented copper hot water cylinders

These ERP compliant cylinders have strong environmental credentials including:

  • Industry leading HCFC free insulation
  • Exceptionally low standing heat loss
  • Insulation incorporates Polyol which is derived from rapeseed oil - a fully renewable resource
  • Being a copper cylinder in the inside the product is fully recyclable

As well as being the most attractive open vented copper cylinder available on the market today other benefits include:

  • Standard 1 inch male and female tappings with compression fittings available as an optional extra
  • Secondary Return available on larger cylinders
  • Additional connections available to order (e.g. Shower take-off)
  • 25miniute recovery time (*Indirect model with suitable heat input)
  • Easy access to the immersion heater boss. Top or side mounted.
  • 10 year warranty
  • Connections can be positioned to customer requirement. Simply provide a design using our form - Designing a Cylinder

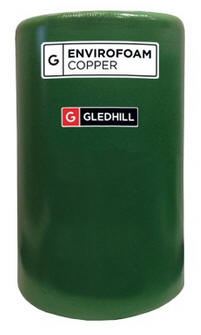

Gledgill Envirofoam copper hot water cylinders

STAINLESS STEEL vented hot water cylinders now available - Click here

The INDIRECT cylinder is supplied with a single immersion heater port (top or side mounted) and a boiler coil (heat exchanger) suitable for a pumped heat source.

If your heat source is unpumped (such as an AGA, Rayburn or Wood Burning Stove) please see our range of cylinders suitable for such - AGA CYLINDERS



Indirect copper hot water cylinder diagram

Copper INDIRECT water cylinders

    ex VAT inc VAT
Size (H x Dia)
900 X 300 INDIRECT 10M WH            218.64 262.37
1050  X 300 INDIRECT 10M WH          230.40 276.48
1200  X 300 INDIRECT 10M WH          253.88 304.66
1500  X 300 INDIRECT 10M WH          255.85 307.02
1800  X 300 INDIRECT 10M WH          314.58 377.49

800  X 350 INDIRECT 10M WH           234.70 281.64
900  X 350 INDIRECT 10M WH           255.21 306.26
1050  X 350 INDIRECT 10M WH          277.96 333.56
1200  X 350 INDIRECT 10M WH          301.14 361.36

900  X 375 INDIRECT 10M WH           294.77 353.72
1050  X 375 INDIRECT 10M WH          302.01 362.41
1200  X 375 INDIRECT 10M WH          335.63 402.76

750  X 400 INDIRECT 10M WH           294.56 353.47
825  X 400 INDIRECT 10M WH           316.62 379.95
900  X 400 INDIRECT 10M WH           251.77 302.13
1050  X 400 INDIRECT 10M WH          253.36 304.03
1200  X 400 INDIRECT 10M WH          285.02 342.03
1500  X 400 INDIRECT 10M WH          354.39 425.26

675  X 450 INDIRECT 10M WH           242.22 290.67
750  X 450 INDIRECT 10M WH           242.22 290.67
825  X 450 INDIRECT 10M WH           269.18 323.01
900  X 450 INDIRECT 10M WH           253.36 304.03
1050  X 450 INDIRECT 10M WH          278.69 334.42
1200  X 450 INDIRECT 10M WH          304.06 364.87
1500  X 450 INDIRECT 10M WH          386.48 463.77
1800  X 450 INDIRECT 10M WH          487.25 584.70

1200  X 500 INDIRECT 10M WH          504.52 605.42
1270  X 500 INDIRECT 10M WH          530.86 637.03
1500  X 500 INDIRECT 10M WH          542.24 650.69
1800  X 500 INDIRECT 10M WH          638.69 766.43

1200  X 600 INDIRECT 10M WH          1,005.37 1,206.44
1500  X 600 INDIRECT 10M WH          1,134.62 1,361.54
1800  X 600 INDIRECT 10M WH          1,263.89 1,516.66







Note: Cylinder illustrations are for guidance only. Connections may be positioned to customer requirements (please refer to Designing a Cylinder section) and those shown should not be

regarded as 'standard'.



Illustrations may show a shower take off/secondary return side mounted at high level. This is

not a standard feature and as with a drain, boiler control stat/sensor pocket or any other feature

should be stated as a requirement.



Immersion heater bosses may be positioned on the side or top of cylinder. Diagrams may show

both for illustrative purposes only.

Somebody offered to price match? Click here to read more.....



DIRECT Copper hot water cylinder prices


By its modern definition the DIRECT hot water cylinder is heated by electrical immersion heater/s only. The immersion heater port/s can be positioned on top of the cylinder (standard position) or on the side by request.

The traditional definition of a DIRECT cylinder had tappings to take the contents to a remote heat source then put back in the cylinder when heated. If this is what you require please ensure you make this clear when enquiring.

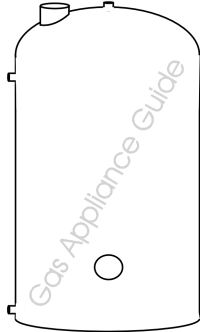

Direct copper hot water cylinder diagram

Copper DIRECT hot water cylinders

  ex VAT inc VAT
Size (H x Dia)
900 x 300 Direct 10m WH              239.23 287.07
1050 x 300 Direct 10m WH             261.97 314.36
1200 x 300 Direct 10m WH             288.05 345.66
1500 x 300 Direct 10m WH             270.92 325.11
1800 x 300 Direct 10m WH             359.87 431.85

900 X 350 Direct 10m WH              255.78 306.93
1050 X 350 Direct 10m WH             297.91 357.49
1200 x 350 Direct 10m WH             303.59 364.30

900 x 375 Direct 10m WH              285.51 342.62
1050 x 375 Direct 10m WH             321.05 385.26
1200 x 375 Direct 10m WH             306.16 367.40

750 x 400 Direct 10m WH              269.12 322.95
825 x 400 Direct 10m WH              304.36 365.24
900 x 400 Direct 10m WH              227.99 273.59
1050 x 400 Direct 10m WH             229.56 275.47
1200 x 400 Direct 10m WH             253.77 304.52

675 X 450 Direct 10m WH              232.24 278.69
750 x 450 Direct 10m WH              232.24 278.69
825 x 450 Direct 10m WH              232.24 278.69
900 x 450 Direct 10m WH              239.53 287.43
1050 x 450 Direct 10m WH             250.17 300.20
1200 x 450 Direct 10m WH             266.01 319.22
1500 x 450 Direct 10m WH             338.91 406.70
1800 x 450 Direct 10m WH             459.60 551.52

1200 x 500 Direct 10m WH             487.89 585.46
1270 x 500 Direct 10m WH             621.59 745.90
1500 x 500 Direct 10m WH             531.87 638.24
1800 x 500 Direct 10m WH             713.16 855.80

1200 x 600 Direct 10m WH             1,085.34 1,302.41
1500 x 600 Direct 10m WH             1,237.41 1,484.89
1800 x 600 Direct 10m WH             1,389.49 1,667.39





Somebody offered to price match? Click here to read more.....

Additions and optional extras

Options available at additional cost include:


  Compression fittings (instead of threaded bosses) 12.00
  Shower take-off 19.50
  Additional Tappings (pairs) 18.00
  Secondary return 12.00

  Immersion Heater (Incalloy) 3kW alloy coated (corrosion resistant) 34.00
  Drain valve (drain cock) [threaded boss included on cylinder] 7.50

  Hi recovery boiler coil (pumped) 75.00
  Super Recovery coil (Pumped) poa
  Additional immersion boss/s (already supplied with one) 18.00
  Gravity boiler coil with 28mm connections (Large bore for AGA, wood burner etc) Please see this section

Positioning tappings to your specification does not normally attract a supplementary charge


When sizing a cylinder remember the stated dimensions do not include the thickness of insulation. You must add the thickness of insulation to the cylinder dimension to obtain the finished size. This is most important if the cylinder needs to pass through a doorway or access hatch. Make sure you have enough room to make connections and service immersion heaters.

Illustrations are for guidance only and should not be interpreted as an exact representation.

All cylinders are compliant with Part L Building Regulations.
