Torrent RE Solar

Mains pressure hot water from a vented Thermal Store utilising a range of heat sources including - Heat pumps, Wood burners, Solar, AGA, Gas & Oil Boilers


Main page

Renewable Energy Storage Technology by GLEDHILL

Fire multiple heat sources into a single thermal store without the need for additional equipment to create mains pressure hot water and a source for wet central heating whilst remaining safely open vented.






This product has been updated

and is now superseded by

TORRENT MULTIFUEL SOLAR

for information on this exciting new product range click here









Prices, Literature, technical information - Click.....

Technical info and Prices Printable colour media

A thermal store enables solar energy to contribute to you domestic heating and hot water requirements

Cylinders for use with a gravity (unpumped) heat source such as AGA, Rayburn, Wood burner and multifuel stoves

Thermal stores are ideal for use with unpumped heat sources and wood burning stoves

Torrent 'RE' Solar Logo

A total hot WATER and HEATING thermal store that makes the most of renewable energy

Mains pressure domestic hot water and central heating that is either open vented or sealed primary without the need for pressure & temperature relief valves, runaways to ground or annual safety checks.

When only an Unvented Cylinder will do - choose...

Stainless Lite


MAKING THE MOST OF SOLAR TECHNOLOGY


Built on the expertise gained with our popular range of Torrent thermal stores, with models suitable for gas, electricity or oil, Torrent ‘RE’ Solar incorporates a highly effective heat exchanger to maximise the energy collected by the solar panels. These can be either flat plate or evaporated tube. The solar dedicated section of the Torrent ‘RE’ Solar then extracts this energy to provide hot water for domestic use but also, importantly, for heating.

Solar heated water flows through the boiler thus reducing the amount of fuel used for HEATING and hot water. This is particularly useful in Autumn and Spring when sufficient energy is still being produced through the collectors to provide background heating.

The ideal way to do this is illustrated in the hydraulic schematic. A typical two zone valve circuit is shown, but a mid position valve will work equally well. At the same time, because of the design philosophy inherent in the Torrent ‘RE’ Solar, energy is also being provided to the domestic hot water coil and flow rates of up to 25 litres per minute can be achieved.

These flow rates are capable of providing a ‘power shower’ or filling a bath in 3-4 minutes.

System design
Torrent ‘RE’ Solar is an open vented system and is therefore inherently safe. It is not subject to Building Control Regulation G3 – thus simplifying system maintenance enormously for landlords or homeowners. There is no requirement for expensive controls such as pressure and temperature (P&T) relief valves or expansion vessels – nor for annual servicing, saving approx £100 per annum. Without the need for a runaway to ground, Torrent ‘RE’ Solar is a particularly popular choice in apartments. Being a primary store, it is also possible to incorporate energy inputs from sources such as a range boiler, wood burning or pellet stove – again reducing the reliance on fossil fuels. The energy produced can then be used in the heating system in addition to providing domestic hot water.

The standard open vented store relies on an F&E (feed & expansion) tank suitably sited above the highest radiator point to provide sufficient head for the system. As the domestic hot water is at mains pressure, the Torrent ‘RE’ Solar itself can be sited anywhere in the property.

Provision is also made within the design for a sealed heating/boiler circuit with the heat exchanger provided which would then operate as a conventional cylinder. Although this would reduce the potential for utilising the solar energy in the HEATING CIRCUIT, it would mean that both the Torrent and the F&E tank can then be sited anywhere in the property, as the F&E is only being used to fill the store with water.

The Torrent ‘RE’ Solar comes complete with compression fittings, temperature gauge, blending valve, immersion cylinder thermostat, immersion heater and 3 sensor pockets, and will work in conjunction with most proprietary solar controllers.

Cold and hot water distribution design
Torrent ‘RE’ Solar models are designed to be fed directly from the mains. They fulfil the requirements of the Water Regulations and therefore do not require a check valve to be fitted to the supply pipe. The performance of the Torrent ‘RE’ Solar is directly related to the adequacy of the cold supply to the dwelling. This must be capable of providing for those services which could be required simultaneously and the maximum demand should be calculated. Torrent ‘RE’ Solar will operate at dynamic pressures as low as 1.5 bar (at the appliance) which must be available when local demand is at its maximum, but the preferred range is between 2 and 3.5 bar. As a general guideline, although a 15mm external service may be sufficient for the smaller dwelling with one bathroom, a 22mm service is preferred (25mm MDPE) and should be the minimum for larger dwellings.

Thermally advanced
It is not widely appreciated that uncased foam insulated cylinders can lose up to 40% of their insulation value within weeks of manufacture and can emit dangerous smoke if involved in a fire. Torrent ‘RE’ Solar uses safe, non-toxic non-combustible Rockwool for continuous high performance during the life of the unit. Heat loss is inline with the requirements of Part L for Thermal Stores as outlined in the WMA Specification for Thermal Stores.

Environmental
We are committed to minimising the environmental impact of our operations and work hard to comply with all relevant environmental legislation. We are pro-active in the recycling of old copper cylinders and can offer incentives to customers in order to help reduce the impact of waste on the environment. All our products have an Ozone Depletion Potential (ODP) of zero and a Global Warming Potential (GWP) of either one or zero.


IT IS IMPORTANT TO MATCH THE CHOSEN TORRENT 'RE' MODEL (DEDICATED VOLUME) WITH THE PROPERTY TYPE TO ACHIEVE COMPLIANCE WITH BUILDING REGULATIONS.

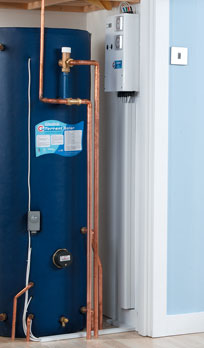

Torrent RE - An open vented thermal store with inputs for heat from boiler, stove and solar and outputs mains pressure hot water

Whatever the type of alternative energy chosen, the key to its success is the primary storage vessel and the control system. This is because all the inputs (whatever the source) and the outputs to both heating and hot water flow through a primary store.

Torrent RE (Solar) provides mains pressure hot water at a stable and safe temperature via a thermostatic mixing valve

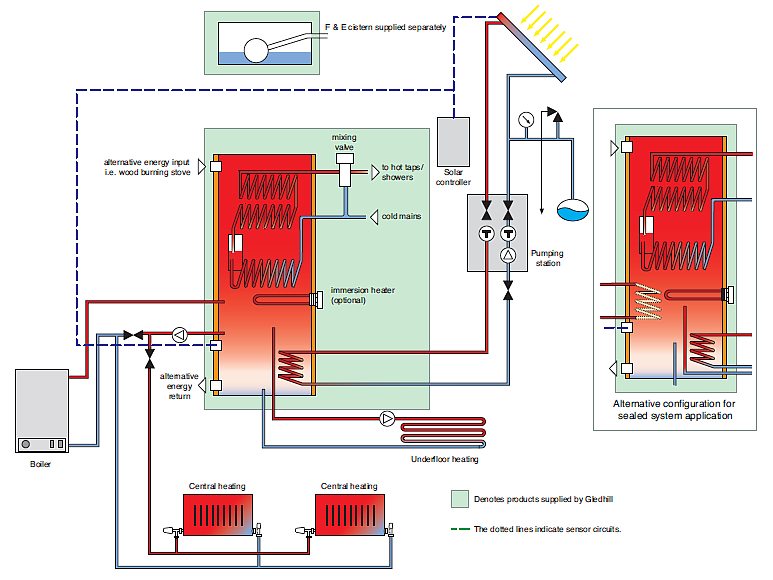

Schematic diagram of a typical thermal store installation with various heat sources including solar

Torrent Solar schematic

Water treatment
The Domestic Heating Compliance Guide published in May 2006 requires a water treatment device to be fitted where the hardness is greater than 200ppm. Full details are given in the Design & Installation Manual supplied with all Torrent ‘RE’ Solar units.

Long life
The thermal store is manufactured from copper sheet to BSEN 1653:1998. The computer designed heat exchanger is produced from finned tube and incorporates a patented expansion chamber which is sealed for life. The units are tested hydraulically and pneumatically both during and after manufacture.
